Product Description
RGB-1 LED Stair Lighting Controller – DC12V-24V, Supports 16/20 Steps, Compatible with SMD5050 & COB RGB LED Strip Lights, Built-in Dimmer
Main Functions:
- Mode Selection: Choose different lighting modes (e.g. static, flash, fade)
- Brightness Adjustment: Manually control brightness level for each or grouped channels
- Delay Time Control: Set delay for gradual fade-in/fade-out or timed activation
- Speed Adjustment: Adjust the speed of dynamic lighting effects
- Color Adjustment: Manual color tuning (for RGB/RGBW channels)
- Individual Channel Control: On/off and level control per output channel
- Zone Control: Manage multiple lighting areas independently
Specifications:
- Type: Manual Control LED Controller
- Max. Load Power: 240W
- Output MAX Current: 10A
- Output Channels: 16 to 28 Channels
- Connection Mode: DC Input/Output
- Control Mode: Manual (e.g., knobs, switches or button panel control)
- Voltage Range: DC 12-24V

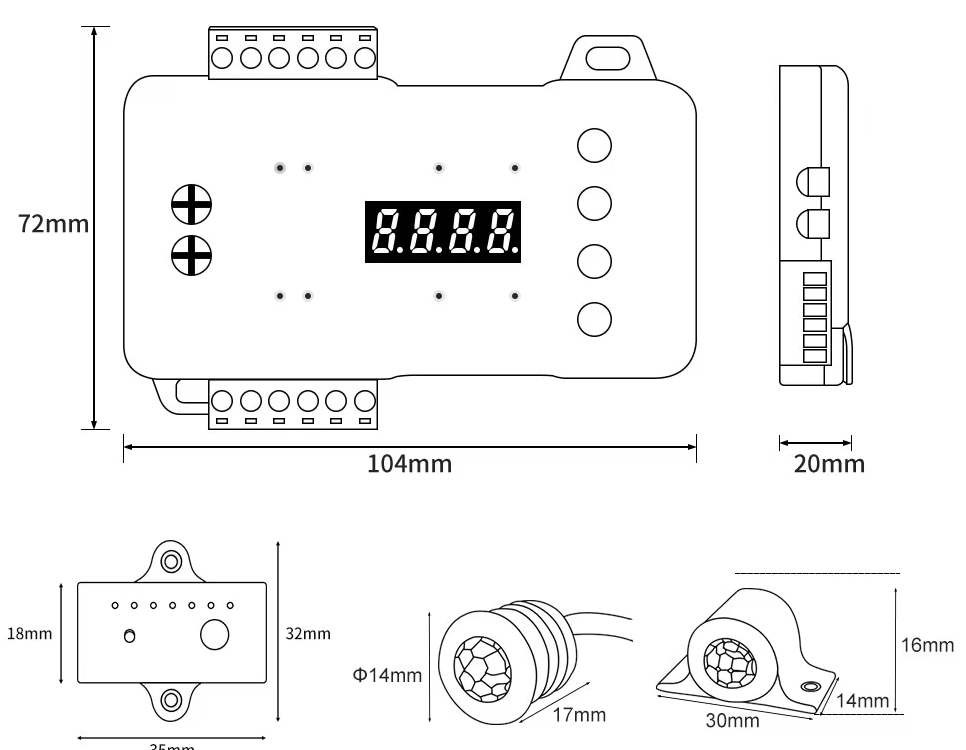

Dimension
